Groups are a way to collect like items without creating an aggregate  – They can be static or dynamic, created manually, through a join or as the result of a calculation and spreadsheet users will find them as a useful replacement for a VLOOKUP –


Manual Grouping

Static groups can easily be created using the Create Groups functionality from the Dimension pane.

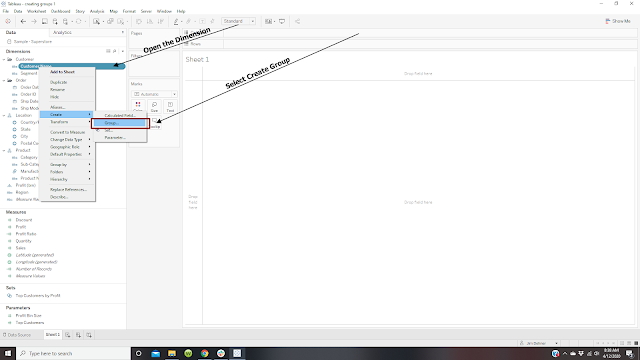

Open the dimension and select "Create Group"



A window will open with several options on how to group members of the dimension

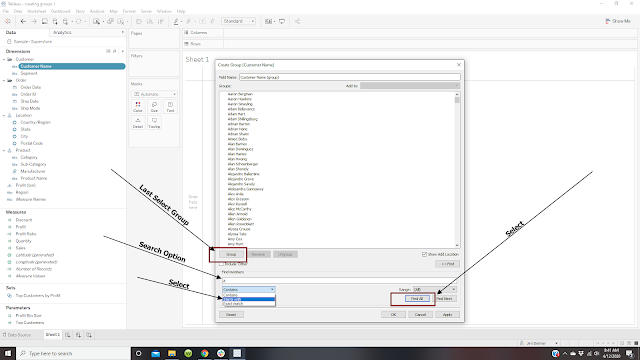

Search Option

The search option can be used to select values with a common value or string – Use "Find All" then select "Group"

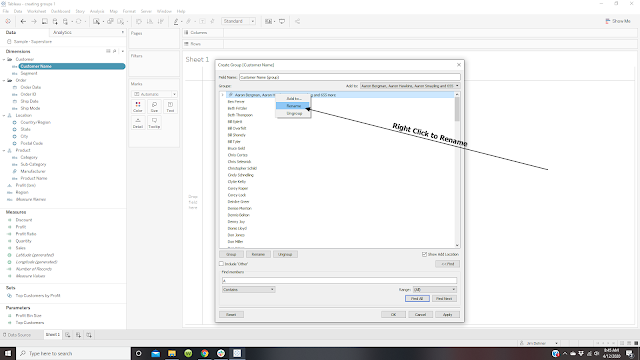

Then Rename the group for use later

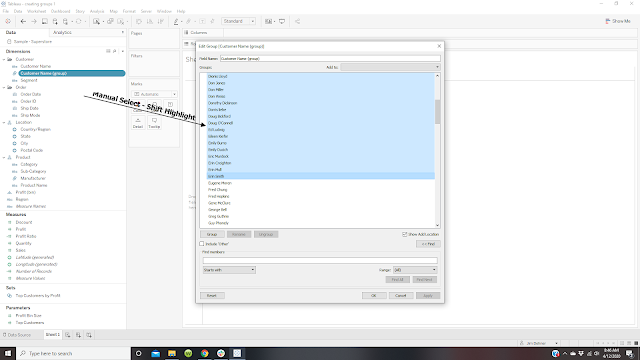

Highlight and Select Option

Using the mouse, shift or ctrl keys highlight the members to be included then select Group

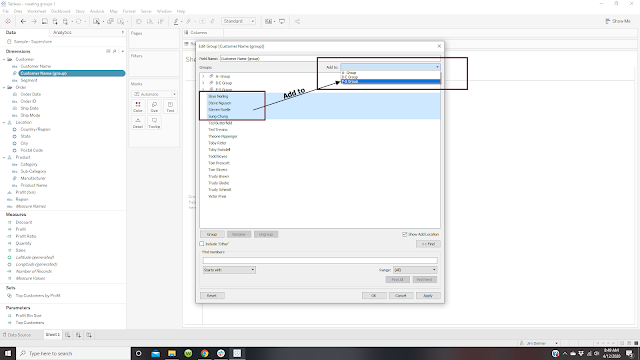

Add to existing group

When new members are to be added to an existing group use the highlight option and then "Add To" in the upper right corner and select the correct group from the dropdown

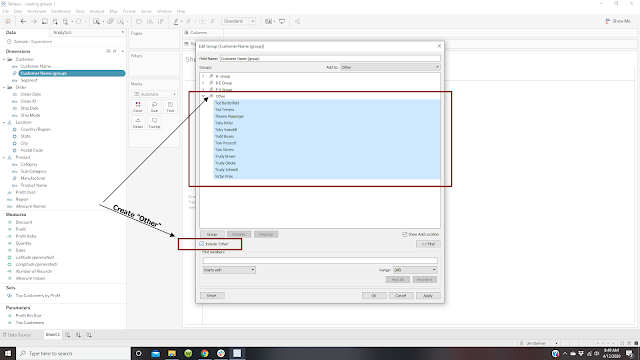

Create and Other Group

Any remaining members can be collected in an "Other" group using the check off box on the lower left

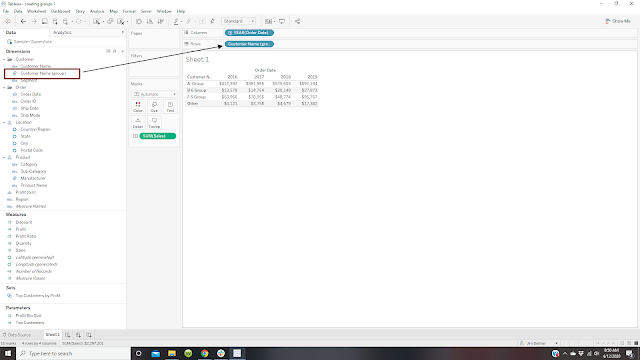

When done there will be a Dimension(group) will be added to the dimension pane which can be used alone or as part of a hierarchy




Create Group is easy to use for static (unchanging groups).  If the members of the groups are even infrequently changed other options may be a better choice

Use a Join to Create Groups

Often posters on the Forum want to recreate a Vlookup function from a spreadsheet calculator.  The approach uses a separate file that lists the dimension value and the corresponding group

For example: Group customers alphabetically by the first letter of their last name.

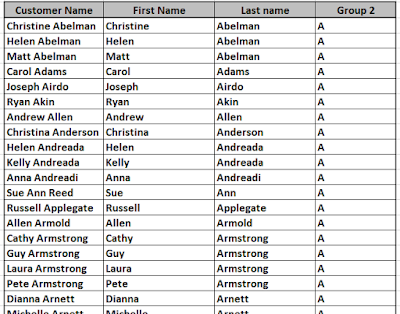

I created a simple excel file with the customer name (first and last) to match same dimension in our Tableau Superstore example, broke out the first and last name and then the first letter of the last name.

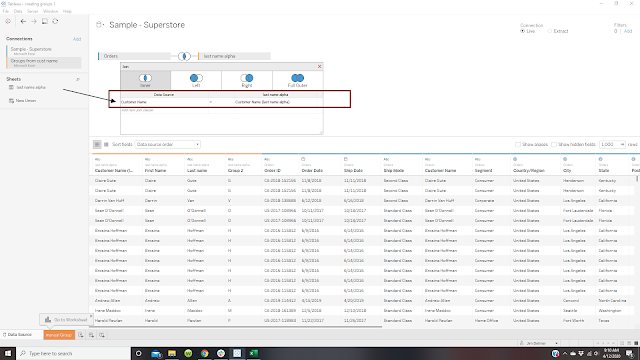

Then join to the Superstore data on Customer Name



and the Group has been added to the dimension pane



Grouping by joining a secondary file works when groups are changed infrequently or can be downloaded directly from another database.  I used a similar approach to grouping products into subcategories and categories along a product hierarchy taken from an ERP system.

Grouping using a Calculated field

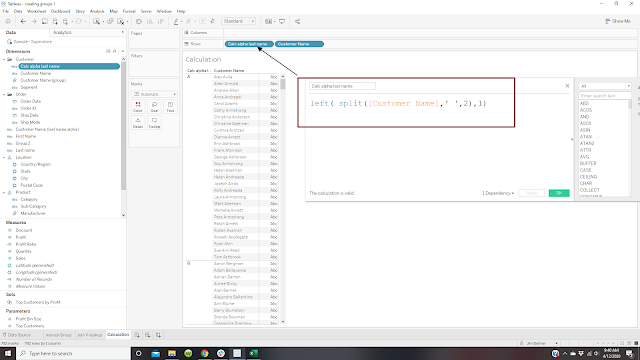

When the grouping can be described using a calculation the groups can be even more dynamic.  The grouping by last name example can also be done using a calculation

left( split([Customer Name],' ',2),1)




Grouping created by using a calculation are dynamic and change whenever the data are updated or changed

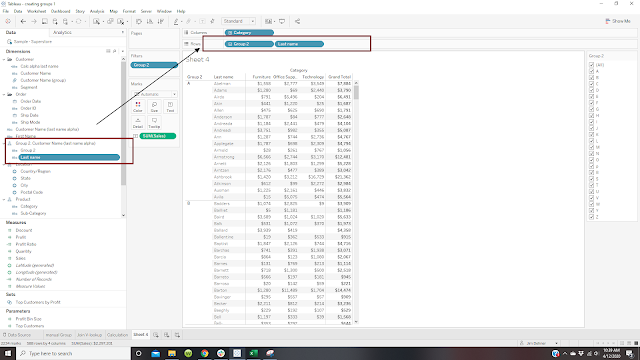

Regardless of how they are created, groups give you a way to categorize the dataset.  They can be used in hierarchies:




and can be filtered

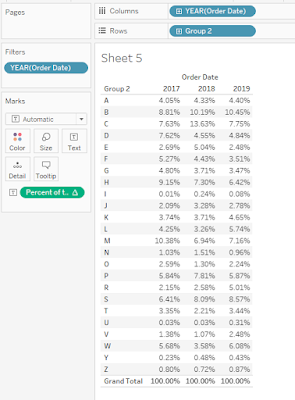

or can be used in calculations



I hope this gives you more insights for groups and how they can be used

The workbook and calculations used in the examples can be downloaded at :




Enjoy

Jim


2 Responses

  1. Hello Jim,
    Would a calculated field be the best option for this example or can you suggest another way?

    Say I have a list of names under "Neighbors":
    Adam
    Beth
    Jake
    Jenny
    John
    Mike
    Paul

    How would you group the "J"s together but still be able to see them separately? So it looks like this:
    Adam
    Beth
    Jake
    Jenny
    John
    All the "J"s (I want Jake, Jenny, and John grouped together here)
    Mike
    Paul

    Thank you!

    1. If it is just a short list I could just manually use Group to create the group – but if you need a formula there are string formulas – similar to those in your spreadsheet calculator –
      You could use if startswith([neighbors],"J") then "Jgroup" else [neighbors] end

      if you need more help please visit the Community Forum and post your question there – you will have access to the full range of talent out there
